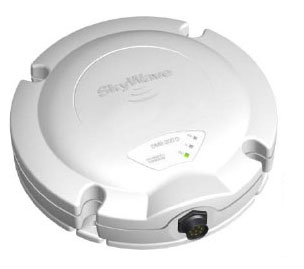

RMS100

The RMS100, Class 1 Division 2 is ideal for monitoring assets in hazardous locations around the world.

The RMS100 combines local sensor, actuator and serial interfaces with a cost-effective satellite modem. Software controllable events, RS485 and discrete input/output lines make the RMS100 a highly flexible hardware component of M2Ms remote monitoring services.

Whether using standalone or with RTU/PLC, native Modbus support on the RMS100 provides a direct connection to common industrial automation equipment, for quick and easy installation.

Features & Benefits

• Class 1 Division 2, Groups A, B, C, D certified terminal meets industry standards for electronic equipment in Oil and Gas markets.
• Modbus protocol interfaces directly with common SCADA devices such as RTU, PLC and flow meters to quickly and easily implement reporting and telemetry capabilities for remote equipment.
• RS485 serial interface allows connection to SCADA devices over large distances to enable flexible deployment in a wide range of operating conditions.
• Seamless global coverage based on the Inmarsat satellite constellation enables operational benefits in remote regions.
• Expanded operating temperature range allows reliable deployment in some of the world’s most demanding environments.
• Immediate reporting of digital status change (all data sent with report).
• Discrete inputs enable monitoring of local devices not using Modbus.
• Over-the-air programming enables M2M to remotely reconfiguration of parameters such as threshold levels or report frequency.

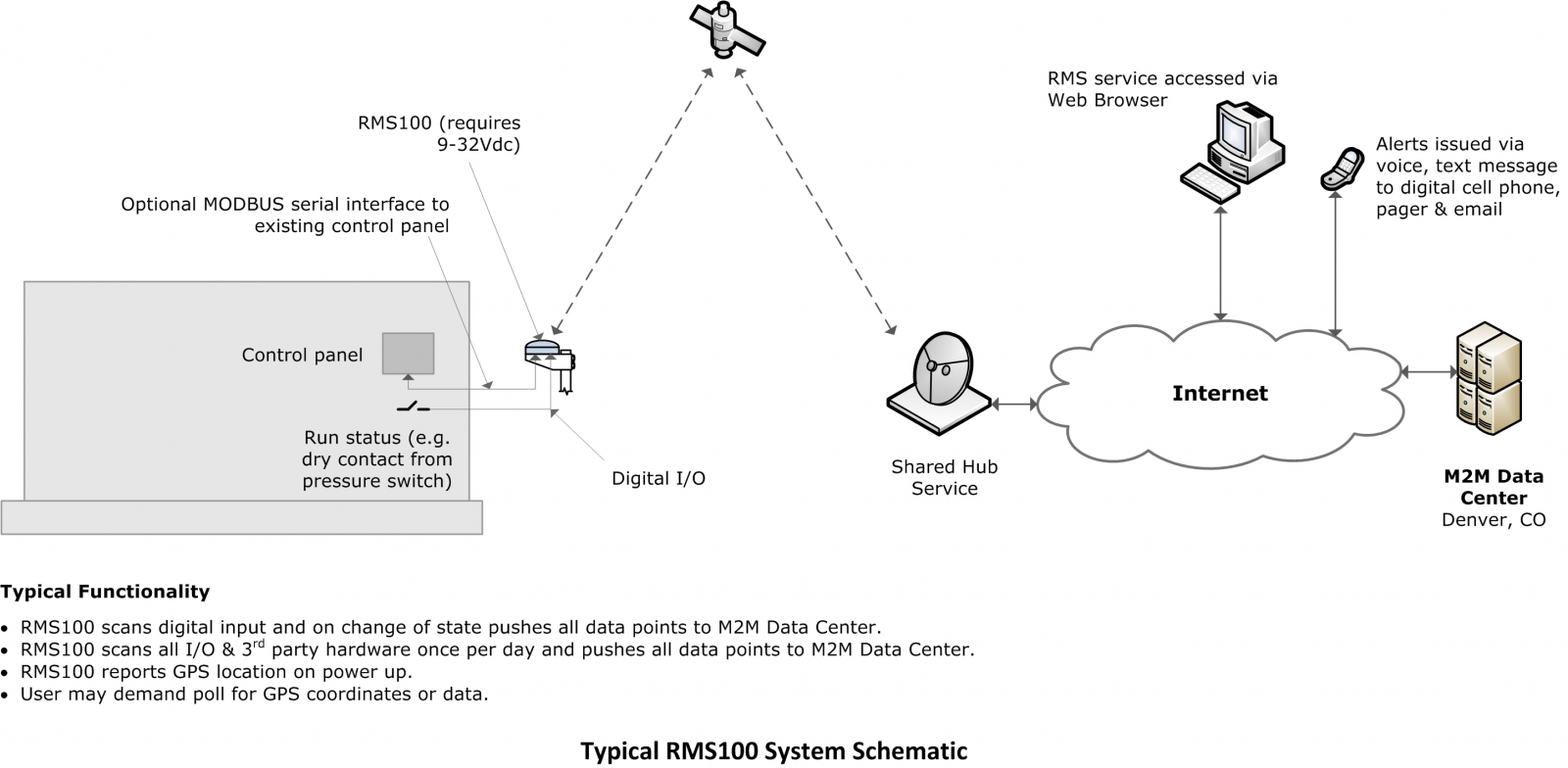

System Schematic

>>Click image full view

RMS100 is compatible with these M2M RMS service products:

Service Code

Description

S1001   S1002 S1005 S1003 S1004   S1006

RMS narrowband domestic USA service. 4 data points reported once per day plus 30 RBE messages. RMS narrowband domestic USA service. 8 data points reported once per day plus 30 RBE messages.   RMS narrowband domestic USA service. 8 data points reported twice per day with no RBE.   RMS narrowband international service. 4 data points reported once per day plus 30 RBE messages. RMS narrowband international service. 8 data points reported once per day plus 30 RBE messages.  RMS narrowband international service. 8 data points reported twice per day with no RBE.

 Specs

RMS100	Part No	Power	RS485	Digital Inputs	Modbus Registers	Comms
RMS100	300-01061	12 or 24 Vdc	1	2	8	IsatM2M

PHYSICAL

• Size: 160mm (diameter) x 47 mm (height). Mounting kit adds 70mm to height
• Mass: ~535 g

ENVIRONMENTAL

• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
• Humidity: 95% Relative Humidity at +30°C non-condensing
• Dust & Water Ingress: IP67/NEMA-4X
• Vibration: 5-20 Hz; 1.92 m2/s3 random noise. 20-500 Hz: -3dB octave random noise
• Shock (survival): Half sine 6ms, 300 m/s2

ELECTRICAL

• Input Voltage: 9 VDC to 32 VDC
• Power Consumption (Typical @ 12VDC)
• Transmit mode: 10.5 W
• Tracking mode (GPS on): 1.1W
• Hibernate mode: 0.24mW
• RS485 ESD: ± 15kV HBM
• Mating Connector: Conxall Mini-Con-X® 6282-8SG-3DC

SATELLITE COMMUNICATIONS (D+/ISATM2M)

• Frequency: Rx: 1525.0 to 1559.0 MHz & Tx: 1626.5 to 1660.5 MHz
• EIRP: 9 dBW max
• Elevation Angle: 0 to +90 degrees
• GPS
• Channels: 16 channels; 1575.42 MHz
• Acquisition:
• Cold-start: 34s
• SuperSense®: -148 dBm
• Accuracy: 3 m CEP; 5 m SEP

CERTIFICATIONS / COMPLIANCE

• Satellite: Inmarsat D+/IsatM2M Type Approval
• Regulatory:
• ANSI/ISA-12.12.01-2007 (supersedes UL1604); CAN/CSA C22.2 No.142,213; UL916; UL50
• FCC, RoHS, Anatel, IC pending
• CE0 Mark (R&TTE)

MEMORY

• Data Log: 320kB: Up to 17,200 positions

EXTERNAL INTERFACES

• Serial:
  RS485: MODBUS RTU interface (8 Modbus RTU read coil/input status channels)
• I/O:
  Qty (1) Digital input (reserved for run status)
  Qty (1) Digital (selectable as input or output; max sink 250mA)

PROGRAMMING CAPABILITIES

• Script Logic
• 128 Actions; 64 Alarms; 64 Timers; 32 Data transformers
• 2 programmable I/O lines – digital or analog
• 128 Geofences (circular, rectangular, polygons)
• Low Power modes
• Modbus
• Read/write up to 64 registers

SATELLITE MESSAGING

• From-Terminal: Up to 192 bytes
• To-Terminal: 4 alert codes + up to 100 bytes

 >>Download RMS100 Data Sheet (PDF)
